Thermal Conductive 99% Alumina Disc / Round Ceramic Disk for Electronic Modulus

Name: Thermal Conductive 99 Alumina Disc Round Ceramic Disk for Electronic Modulus
Brand: Mingrui
Price: 1 USD

Wholesale Thermal Conductive 99% Alumina Disc / Round Ceramic Disk for Electronic Modulus from china suppliers

Brand Name : Mingrui

Model Number : XF-420

Certification : ISO9001, , CE, UL, TUV

Place of Origin : China

MOQ : 1 pieces

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 8000 pieces month

Delivery Time : 15 working days after the order confirmed

Packaging Details : intertional carton box

Name : alumina ceramic disc

Application : ceramic disc heater

Material : alumina ceramic

Feature : thermal conductive

Size : custom

MOQ : 1PCS

Shipping : DHL EMS UPS FEDEX TNT

Type : alumina ceramic plate

OEM : yes and welcome

Delivery : 10 days

Contact Now

Thermal Conductive 99% Alumina Round Disc Ceramic Disk for Electronic Modulus

Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.

zppd_Company_Profile-_Dongguan_Mingrui_Ceramic_1-a...

Alumina round Disc is a frequently used for semiconductor processing , electronic packaging material, widely used in the packaging of hybrid integrated circuit and multichip module.The advantages of Alumina round disc are:

High mechanical strength

Good electrical insulation

Low dielectric constant and dielectric loss

Similar thermal expansion with electronic components

High thermal conductivity

Excellent corrosion resistance

Thermal Conductive 99% Alumina Disc / Round Ceramic Disk for Electronic Modulus

Properties of Alumina and Zirconia Ceramic :

Properties	Units	95 Alumina	99 Alumina	ZrO2
Density	g / cm³	3.65	3.92	5.95-6.0g/cm³
Water absorption	%	0	0	0
Coefficient of thermal expansion	10^-6/K	7.9	8.5	10.5
Modulus of Elasticity Young's Mod	GPa	280	340	210
Poisson's ratio	/	0.21	0.22	0.3
HV Hardness HV	MPa	1400	1650	1300-1365
Flexural Strength @ room temperature	MPa	280	310	950
Flexural Strength @700°C	MPa	220	230	210
Compressive Strength @ room temperature	MPa	2000	2200	2000
Fracture Toughness	MPa *m^1/2	3.8	4.2	10
Heat conductivity @ room temperature	W/ m*k	18-25	26-30	2-2.2
Electrical Resistivity @ room temperature	Ω*mm²/m	>10¹⁵	>10¹⁶	>10¹⁵
Max use temperature	°C	1500	1750	1050
Resistance to acid alkaline	/	high	high	high
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV/mm	16	22	/
Thermol Shock Resistance	△ T ( °C )	220	180-200	280-350
Tensile Strength @ 25 °C	MPa	200	248	252

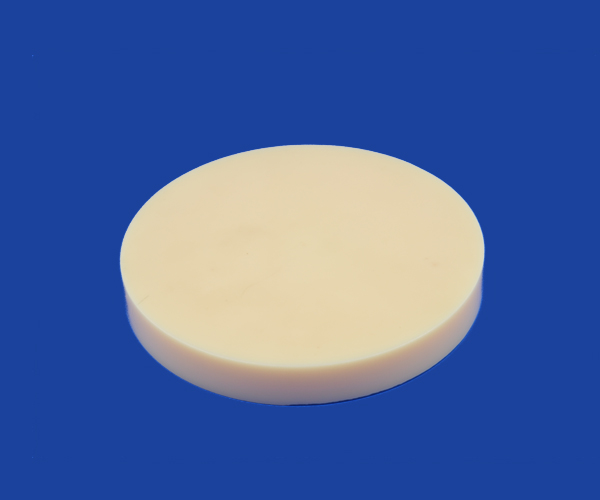

photos of ceramic sheet :

Thermal Conductive 99% Alumina Disc / Round Ceramic Disk for Electronic Modulus

Company Introduction:
We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high precision zirconia and alumina ceramic parts, ceramic thread tube . Our main products include ceramic rod , ceramic tube, ceramic plunger, ceramic valve, ceramic plate, ceramic shaft and bearing , ceramic nozzle etc , which are mainly used in industrial fields of Machinery, Petrochemical oil and gas, Valves, Automotive, Food Processing, Fluid Handling, Process Control, Thermal Processing, Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical, Engineering, Mineral Processing, etc.
We have a full service include mold design and development , ceramic forming , precision machining
and precision detection technology. We have achieved great successes in particular requirements
which is based on cooperating with Tsinghua University and getting rich experience by our professional technical engineer teams . Our factory have an unique technical called mirror polishing which improve
our products more smooth , bright than other competitors.

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
