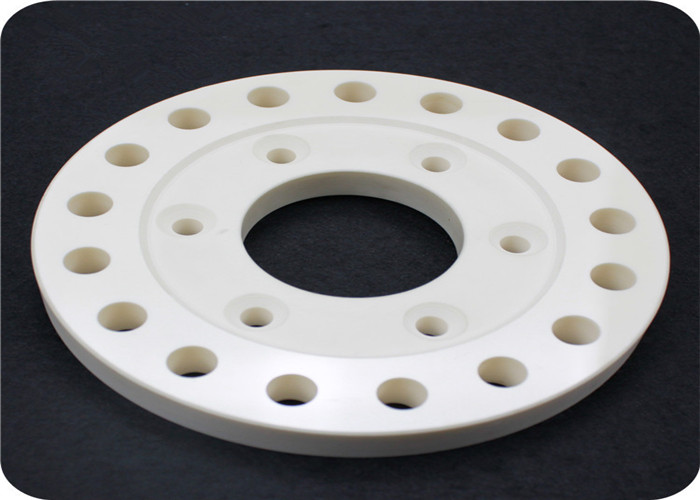

Customized Ceramic Disc 99% Machinable Alumina Ceramic Parts
Product Description
| Performance |
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 |
| Elastic modulus | Gpa | 120 | 280 | 320 |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 |
| Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 |
| Dielectric strength | *106V/m | 18 | 12 | 15 |
Advantage
1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). HIgh hardness
Applicatiom:
1) Electric appliance industry
2) Automotive industry
3) Mechanical industry
4) Engineer industry
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance, but relatively low strength and fracture toughness. Alumina ceramic is generally white but may also be pink or ivory. The color is derived from either the sintering additives or impurities in the raw materials.
Company Introduction
Mingrui ceramic manufacture and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.
| General Characteristics of Materials: |
| Characteristic | Ceramics | Metals | Polymers | Refractory |
| Density | Low to High | Low to High | Low | Low to Medium |
| Hardness | High | Medium | low | Medium |
| Toughness | low | High | Medium | low |
| Wear Resistance | High | Medium | low | Medium |
| Tensile Strength | Low to Medium |
High | low | low |
| Compressive Strength | High | Medium to High | low to Medium | High |
| Young’s Modulus | Medium to High | Low to High | Low | Medium |
| Dimensional Stability | High | low to Medium | low | / |
| Thermal Expansion | Low to Medium | Medium to High | High | low |
| ThermalConductivity | Medium | Medium to High | Low | Medium |
| Thermal Shock | Low | Medium to High | High | low to Medium |
| Electrical Resistance | High | low | High | / |
| Chemical Resistance | High | low to Medium | Medium | / |
