Product Description
The accuracy achieved after precision machining
(1) Axis: roundness 0.002 mm, concentricity 0.002 mm, smoothness Ra0.1;
(2) Hole: the minimum processing hole diameter is 0.2 mm and the depth is up to 6 mm (depending on the material);
(3) Slot: min. value to be 0.1 mm of narrow groove, and grooves with custom shapes;
(4) Plane: 0.1mm sheet with minimum processable thickness, parallelism 0.001mm, measurement tolerance 0.001 mm, finish Ra0.1;
(5) Thread: The minimum machinable M2 internal thread, the accuracy of GB-7h, the external thread size is not limited, the accuracy is GB-6g.
Main characteristics of the alumina ceramic parts
1. They offer different grade dimensional accuracy per sintered only, precision machining
2. They are more cost-effective ceramic parts with equivalent performance among all other technical ceramics
3.. High hardness, it is can be up to 1700 HV, and Super compressive strength up to 2240 Mpa
3. High heat resistance: Alumina ceramic parts offer excellent thermal stability, which means that it is widely used in areas where resistance to high temperatures is essential.
4. Good wear resistance: it is an ideal choice to wear parts in high abrasive industry
5. High electrical resistivity: used in all-electric products, electric heating products, and wear-resistant machinery parts.
6. High corrosion resistance: It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
7. We support a variety of customized alumina ceramic parts base on customer's drawing, sample, or reference parameters

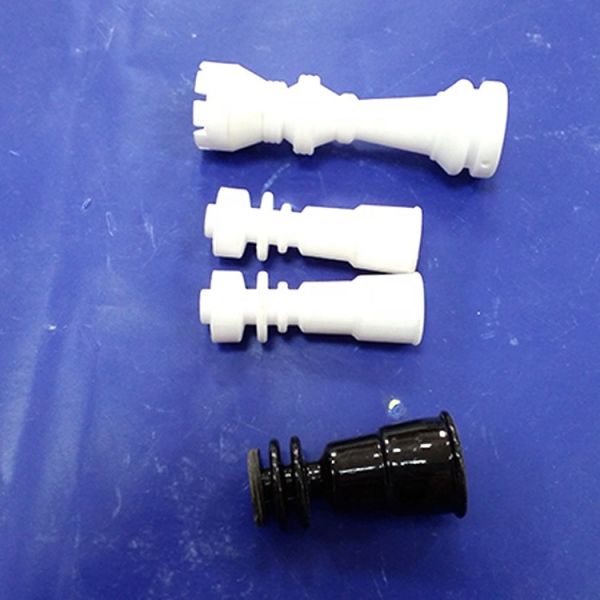

Description of alumina ceramic parts
Alumina (Aluminum oxide) offers excellent electrical insulation, high-temperature resistance together with high hardness and good wear resistance, so alumina ceramic parts are commonly used as a kind of insulating, heat resistance and anti-chemical engineering and structural ceramic components, including ceramic electrical insulator, high voltage ceramic holder, ceramic parts in high-temperature furnace, ceramic seal disc in pump and so on.
Our factory produces a selection of purity of alumina from 75% to 99.8%, all of the ceramic parts we supplied are with a dense body via dry pressing, hot pressing, ceramic injection molding, and ISO pressing. In order to achieve some special application for fitting, reducing the friction, increasing the insulation, we provide a serial of secondary processes after sintering, covering CNC machining, polishing, glazing and metallizing.
We manufacture a wide range of alumina ceramic rings, including ceramic tubes, ceramic rings, ceramic disc, ceramic rod, ceramic arms, ceramic wire guides. Whatever, its a prototyping case, or high volume demand, we believe we are able to provide you a desirable solution.
Application of alumina ceramic parts:
Alumina ceramic parts are widely used in the electronic, electrical, machinery, chemistry, ceramic seal,
mineral, new energy, military, aerospace, almost all modern industries.
Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
