Precision Zirconia Ceramic Parts Zro2 Zirconia Ceramic Ring For Machining Parts

Product Categories

Dongguan Ming Rui Ceramic Technology Co.,ltd

Contact Now

Name: Precision Zirconia Ceramic Parts Zro2 Zirconia Ceramic Ring For Machining Parts
Brand: Mingrui
Price: 1 USD

Brand Name : Mingrui

Model Number : Tang-101

Certification : ISO9001, , CE, UL, TUV

Place of Origin : Guangdong,China

MOQ : 1 pieces

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 5000 pieces per month

Delivery Time : 15-25 working days after the order confirmed

Packaging Details : Export protective packing

Size : Can Be Customzied

Keywords : zirconia ceramic impeller , zirconia gear wheel

Precision : +- 0.001mm

Surface Treatment : polishing or glazing

Producing method : hydrostatic forming

Testing Way : Strict Quality Control

Max. Worki Temperature : 1650 Degree C

Color : White, yellow,or customized

Compressive Strength : 2000 - 2500 Mpa

Contact Now

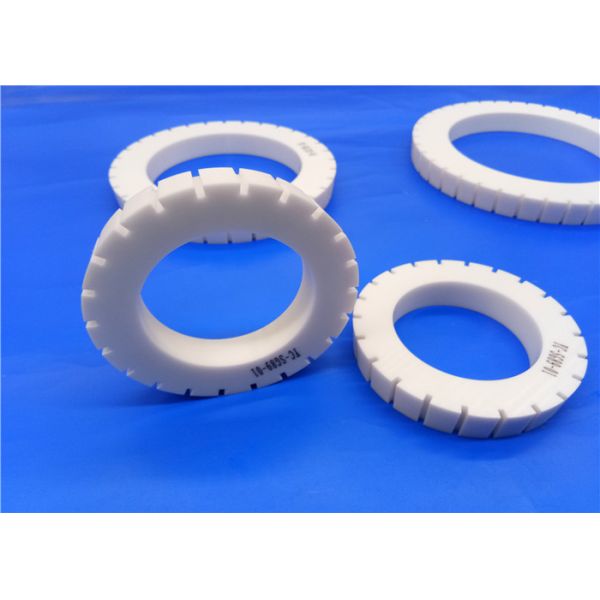

Excellent High Precision Industrial Zro2 Zirconia Ceramic Ring For Machining Parts

Feature of Zirconia Ceramic Ring :

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

We can supply the products according to customer's drawings, samples and performance requirement.

Properties of Alumina and Zirconia Ceramic :

Properties	Units	95 Alumina	99 Alumina	ZrO2
Density	g / cm³	3.65	3.92	5.95-6.0g/cm³
Water absorption	%	0	0	0
Coefficient of thermal expansion	10^-6/K	7.9	8.5	10.5
Modulus of Elasticity Young's Mod	GPa	280	340	210
Poisson's ratio	/	0.21	0.22	0.3
HV Hardness HV	MPa	1400	1650	1300-1365
Flexural Strength @ room temperature	MPa	280	310	950
Flexural Strength @700°C	MPa	220	230	210
Compressive Strength @ room temperature	MPa	2000	2200	2000
Fracture Toughness	MPa *m^1/2	3.8	4.2	10
Heat conductivity @ room temperature	W/ m*k	18-25	26-30	2-2.2
Electrical Resistivity @ room temperature	Ω*mm²/m	>10¹⁵	>10¹⁶	>10¹⁵
Max use temperature	°C	1500	1750	1050
Resistance to acid alkaline	/	high	high	high
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV/mm	16	22	/
Thermol Shock Resistance	△ T ( °C )	220	180-200	280-350
Tensile Strength @ 25 °C	MPa	200	248	252
